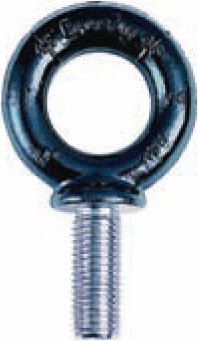

S-279 Shoulder Type Machinery Eye Bolts - UNC

Forged Steel - Quenched & Tempered.
Working Load Limits shown are for in-line pull.
Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements.
Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
Recommended for in-line pull.
S-279 threaded UNC.
M-279 metric threaded.
